Berstorff - ZE 25Rx44D

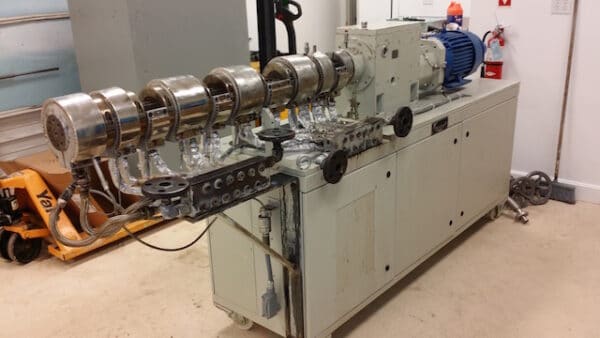

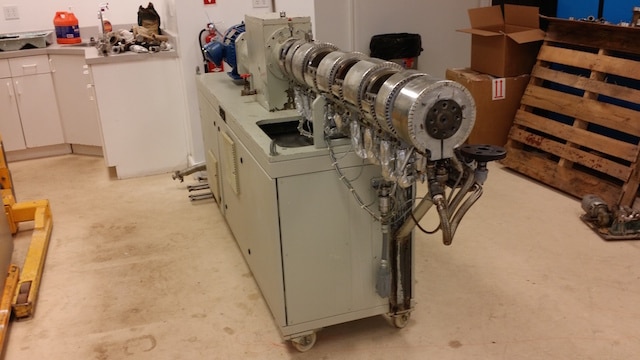

Specification Comments: 25mm Twin Screw Extruder

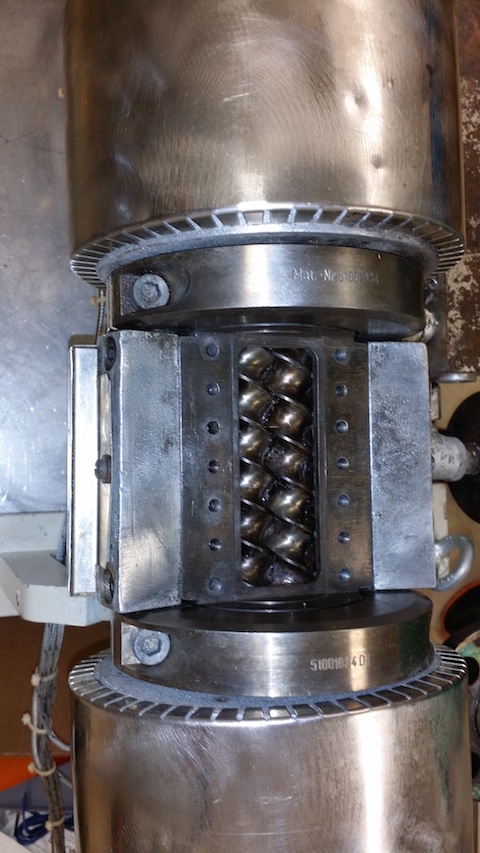

Co-Rotating intermeshing screws, 44:1 L/D ratio, with a Flender gearbox

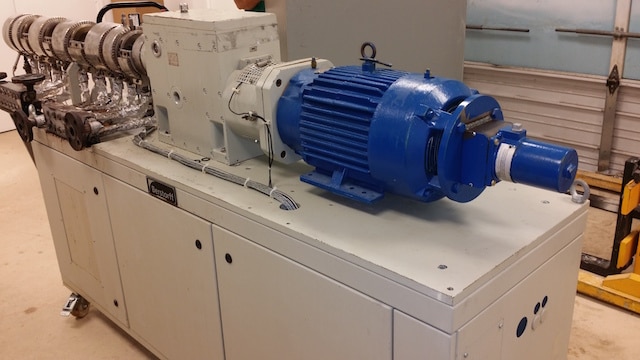

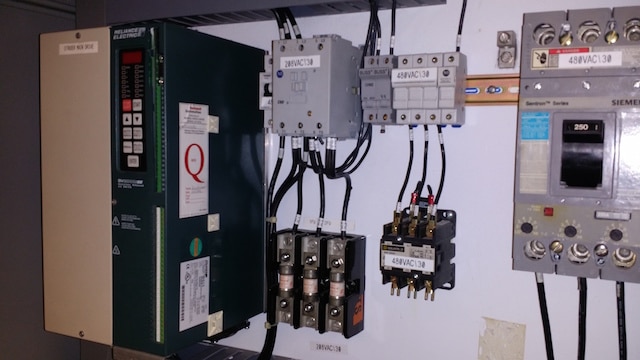

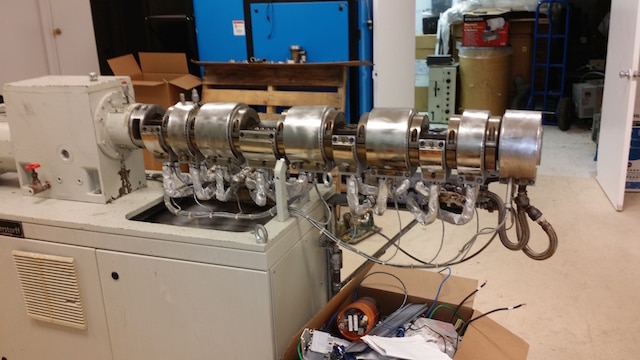

Hot oil temperature controlled, with vacuum pump and adjustable vacuum venting manifold with quick clamps, ten barrel sections, four open barrel sections with bolt on blanks, including for the main feed, two bolt on stacks for the open sections to adapt feed or vent options, with top sight glasses included, 10 HP AC motor with Reliance variable speed drive, Budzar 3-zone temperature control unit, 16 spare unused screw elements and misc other spare parts.

The unit has no side feeder or control panel.
