MAS - MAS 55L

MAS 55L
MAS 55L - Image 2
MAS 55L - Image 3
MAS 55L - Image 4
MAS 55L - Image 5
MAS 55L - Image 6
MAS 55L - Image 7
MAS 55L - Image 8
Item Number
5263
Brand
MAS
Model
MAS 55L
Year
2017
Specification Comments
2 Co-Rotating Conical Screws:
Melt output section: Ø 55 mm
Intake section: Ø 122 mm
Screw length: 1450 mm
Screw speed: Up to 250 rpm
Standard drive: 125 kW Direct Drive (VFD controlled)

Barrel heating:
6 heating zones + 2 adapter zones
32 kW PID controlled

Barrel Cooling: Air Cooled

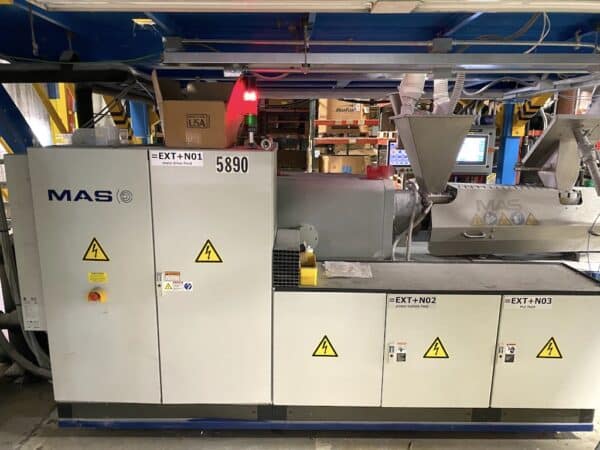

Control cabinet:
IP54, Built to CE Standards, EN 60204 with water / air heat exchanger, External electrical cabinet, including 5m cable length between cabinet and extruder.

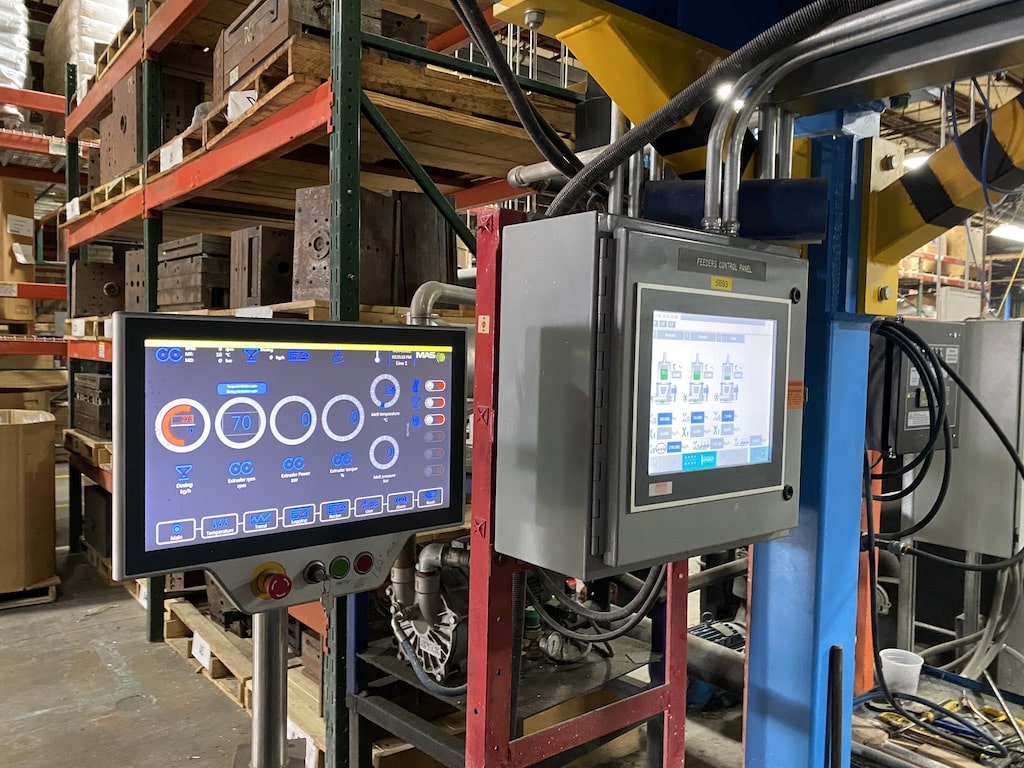

Operator interface controlling system:
Touch screen 15", 1024 x 768 Pixel / Industrial PC Atom™ Z510, 1,1 GHz, 4 x USB, Ethernet / CAN-Bus / PID-temperature controller, melt pressure and melt temperature indication on touch screen panel. Software includes: overview, different setting pages trend analyzing, different operator levels, recipes, etc.
