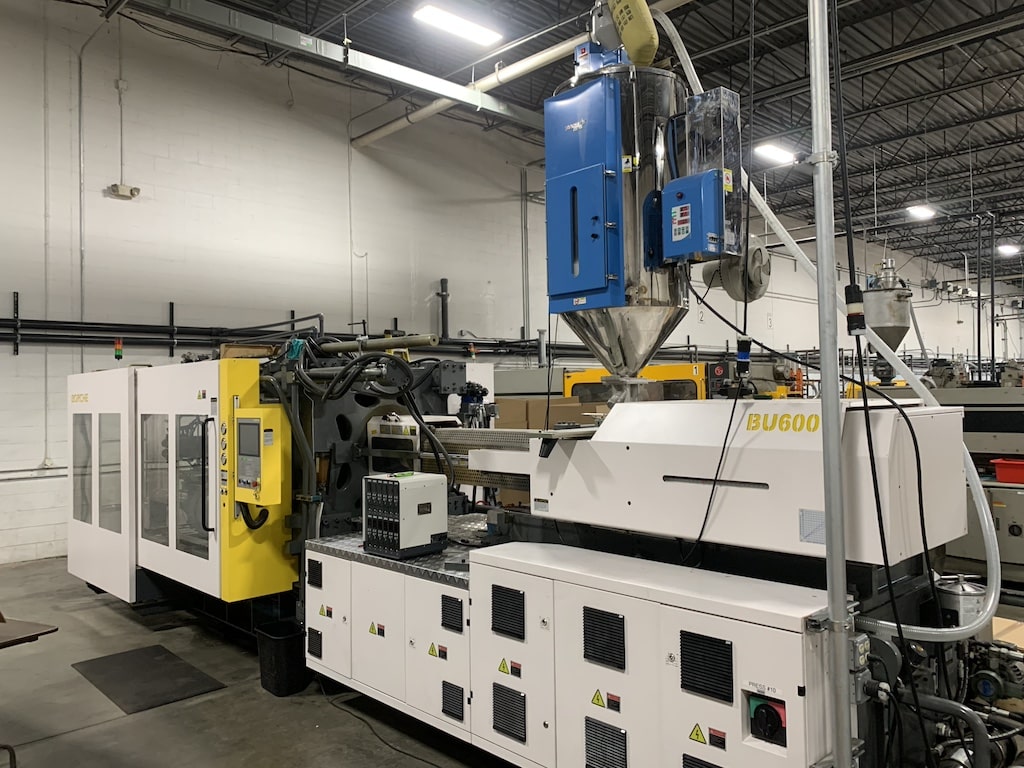

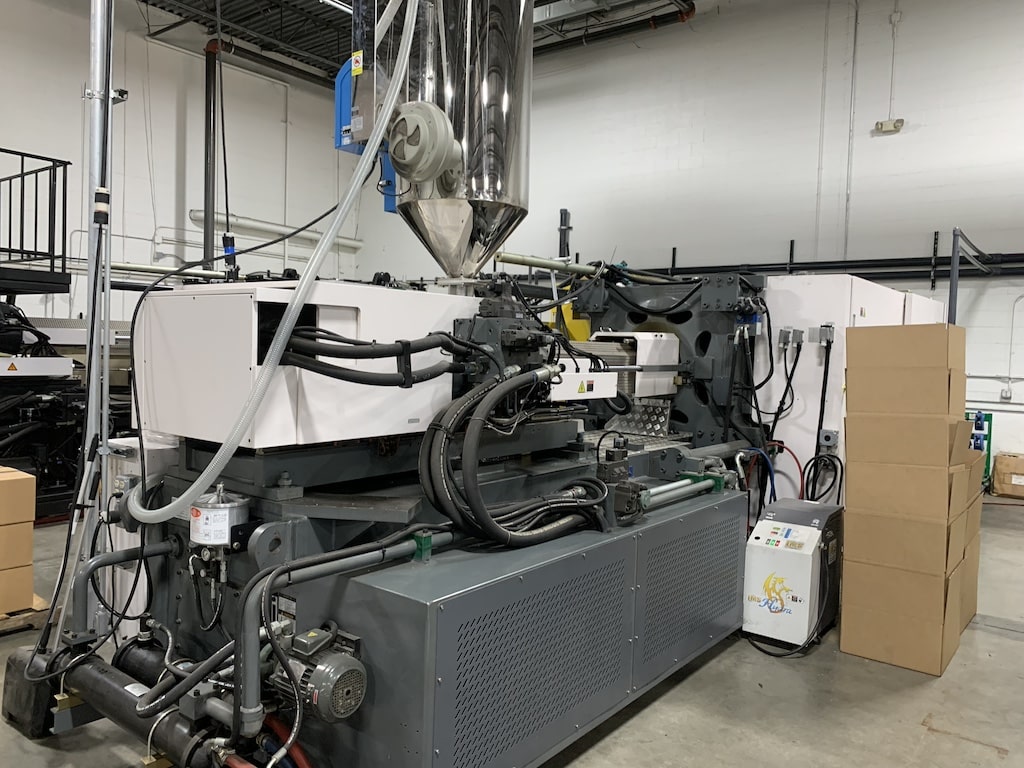

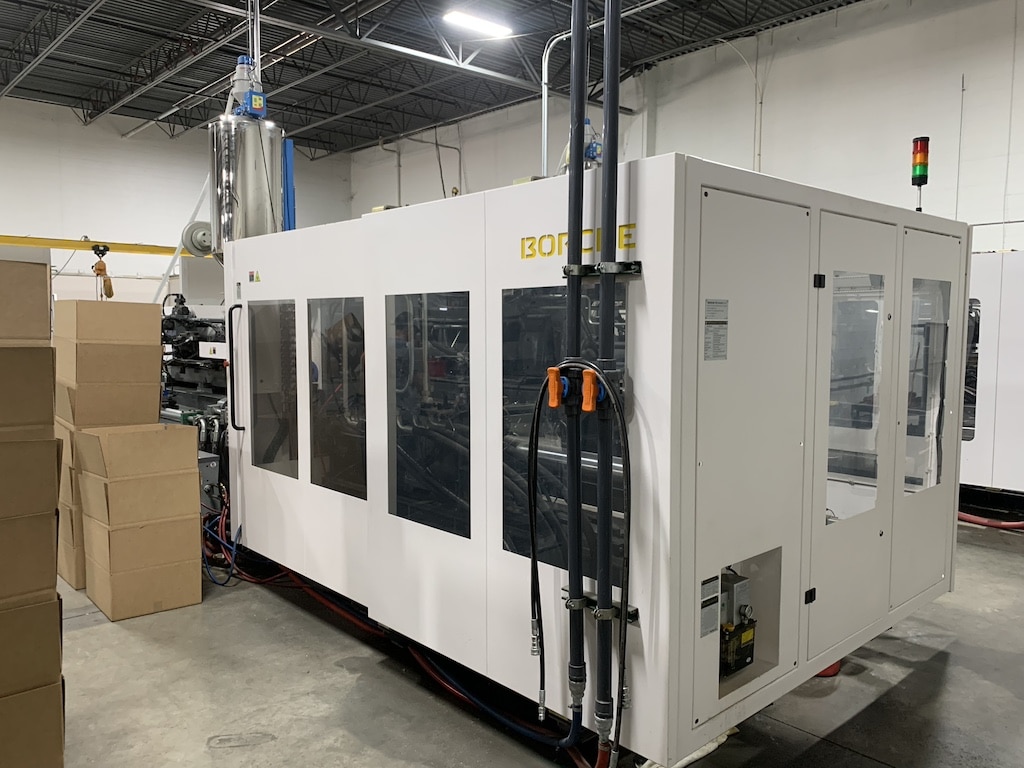

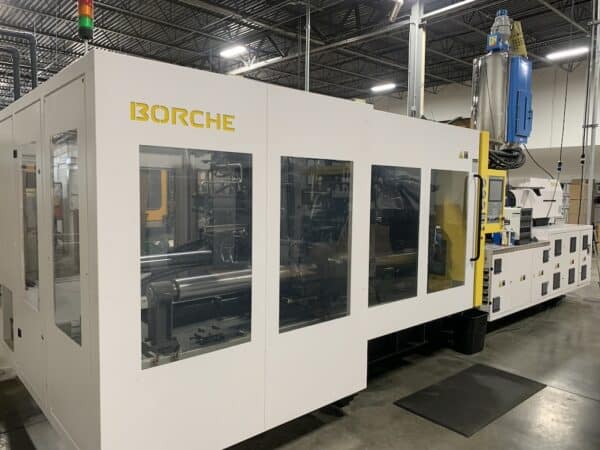

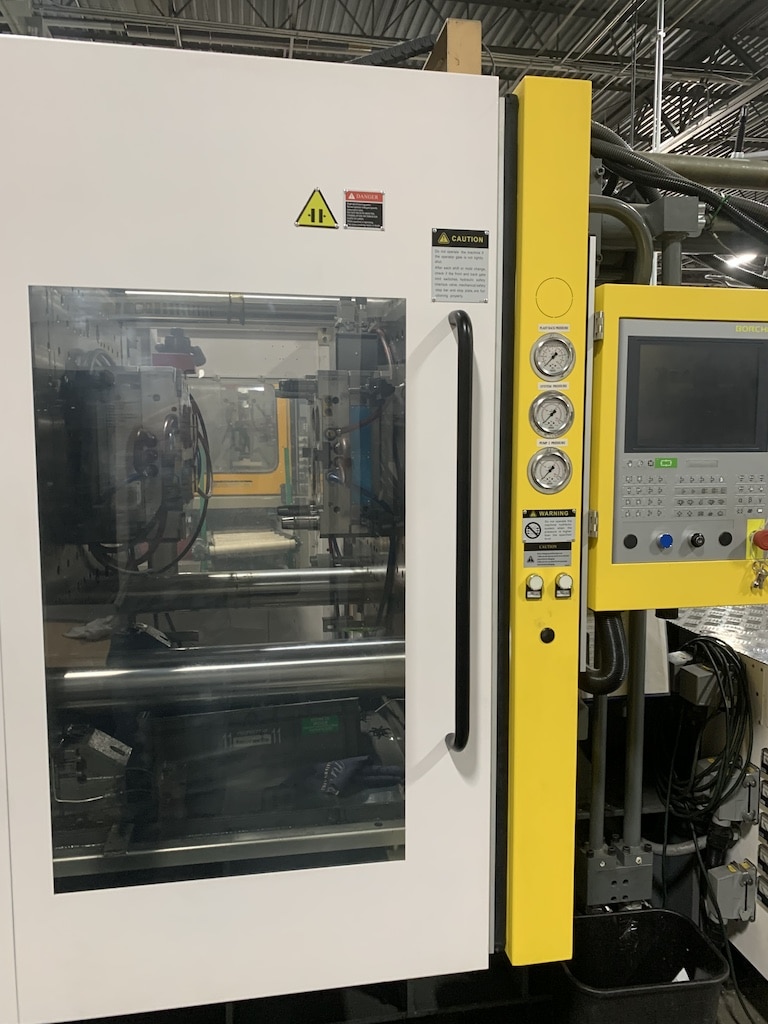

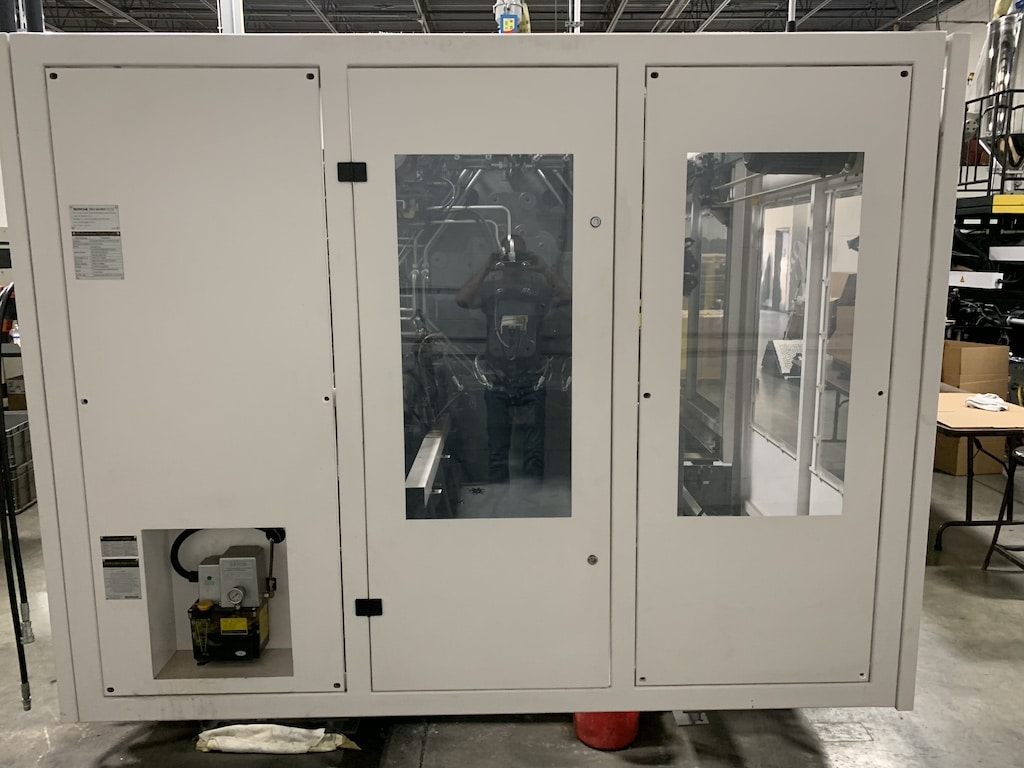

Borche - BU600T
- Item Number
- 5467
- Brand
- Borche
- Model
- BU600T
- Year
- 2020
- Tonnage
- 674
- Shot Size Oz.
- 82
- Shot Size Grams
- 2324.659
- Tie Bar Spacing
- 35.83" x 35.83"
- Platen Size
- 51.57" x 51.57"
- Daylight
- 68.9"
- Clamp Type
- Two Platen Design

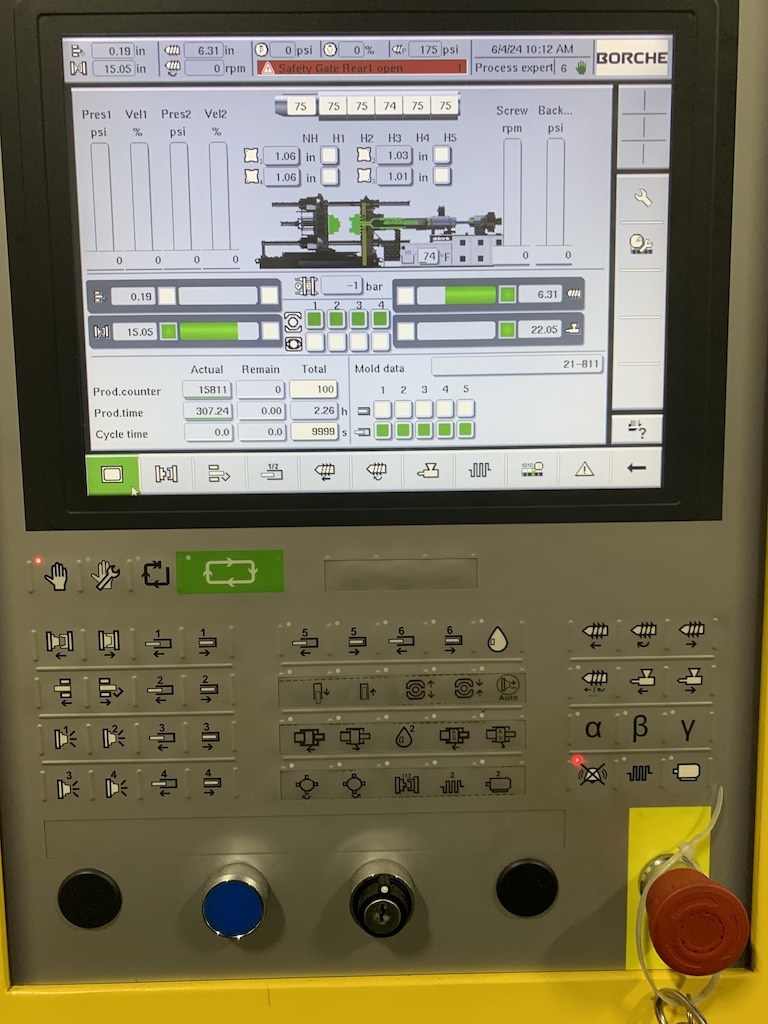

- Control
- KEBA 2880
- Clamp Stroke
- 57.09"
- Voltage
- 480
- Ejector Stroke
- 11.02"
- Min/Max Mold Height
- 11.81" - 34.25"
- Specification Comments
Machine Hours in Full Auto: 189.3 ONLY
4 x Core Pull
4 x Air Blow
Robot Interface Euromap 12
SPI Platens
Hydraulic Safety Interlock
Mechanical Safety Interlock with Sensor
3-color Alarm
Mold Ejector Plate Monitor
Centralized grease lubrication
Nozzle purge guard with Switch
Nozzle with thermocouple control
Back Pressure Valve
Pilot Check Valve
Water manifolds
Eject on the fly
