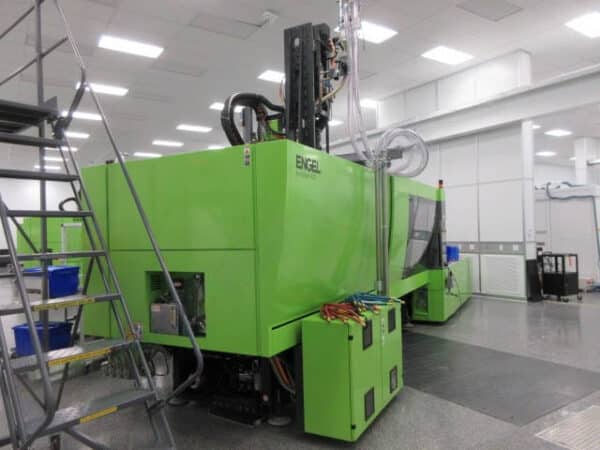

Engel - e-motion 740H/50MV/420 T combi US - 2-Shot

e-motion 740H/50MV/420 T combi US - 2-Shot
Item Number
5499
Brand
Engel
Model
e-motion 740H/50MV/420 T combi US - 2-Shot
Year
2021
Tonnage
420
Tie Bar Spacing
30.7" x 30.7"
Platen Size
44.89" x 44.89"
Control
CC300
Clamp Stroke
27.55"
Voltage
480
Ejector Stroke
8.26"
Min/Max Mold Height
43.3" - 61.02"
Specification Comments
2-Shot Injection Molding Press

Main Injection Unit: 10.2 oz (45mm)
Secondary Vertical Injection Unit: .45 oz. (18mm)
Core Pull
Pneumatic Valve Gate

Including: Engel Viper Robot
Add to Quote Request
