Husky - HL500

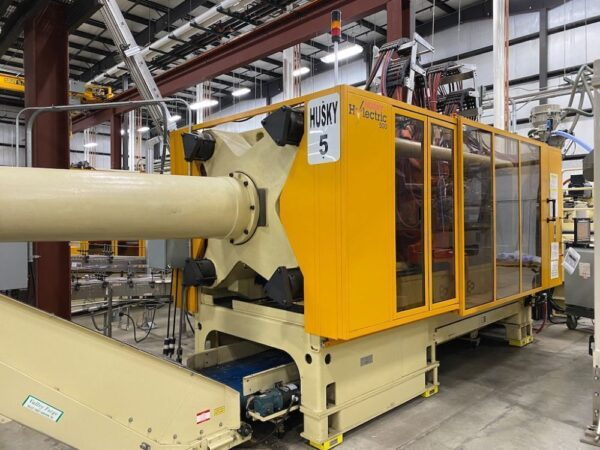

HL500

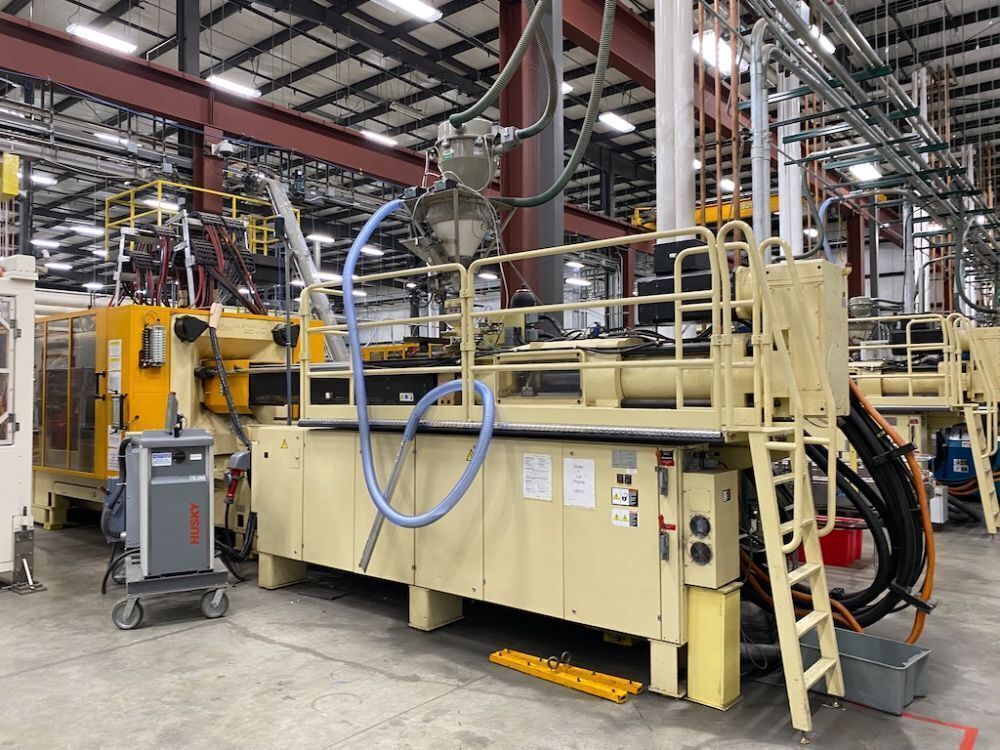

HL500 - Image 2
HL500 - Image 3
Item Number
5324
Brand
Husky
Model
HL500
Year
2004
Tonnage
550
Shot Size Oz.
133
Shot Size Grams
3770.4835
Tie Bar Spacing
40.2" x 40.2"
Platen Size
56.7" x 58.3"
Daylight
97.4"
Control
Polaris
Screw Diameter
100mm
Voltage
460
Injection Unit Size
RS115/100
Ejector Stroke
7.87"
Min/Max Mold Height
21.7" - 47.2"
Specification Comments
Electric Screw Drive
Core Pull on Stationary & Moving Platens
Air Blow on Stationary & Moving Platens
Stack Mold Carrier Provision with Stack Mold Carrier

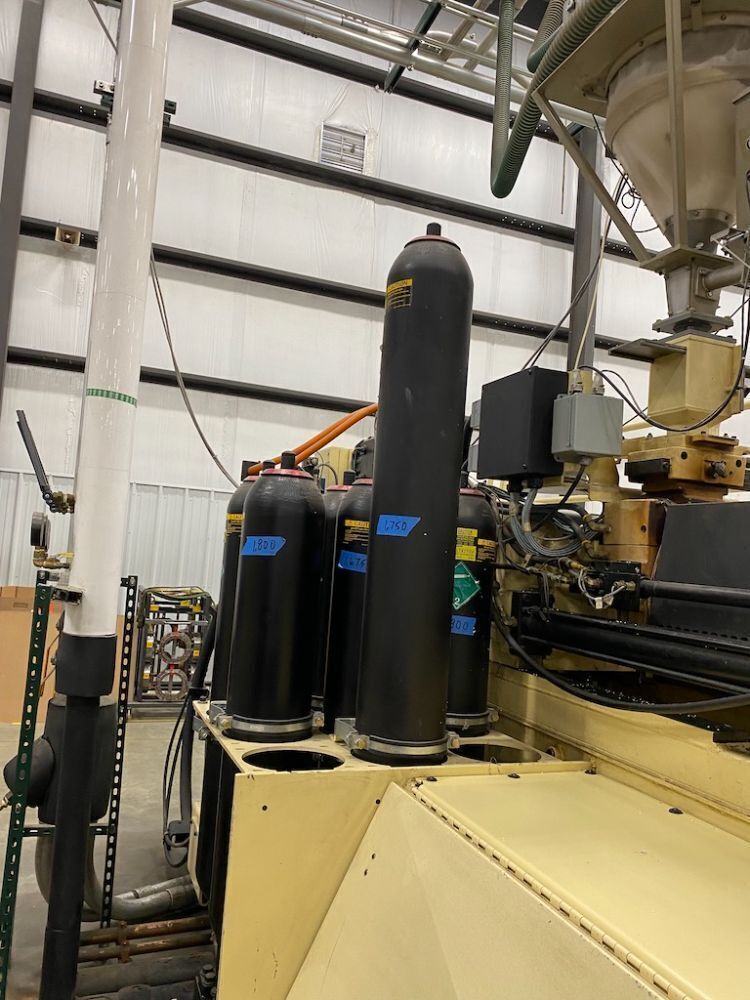

Accumulators on Injection End
