Krauss Maffei - KM 420-4300 CX

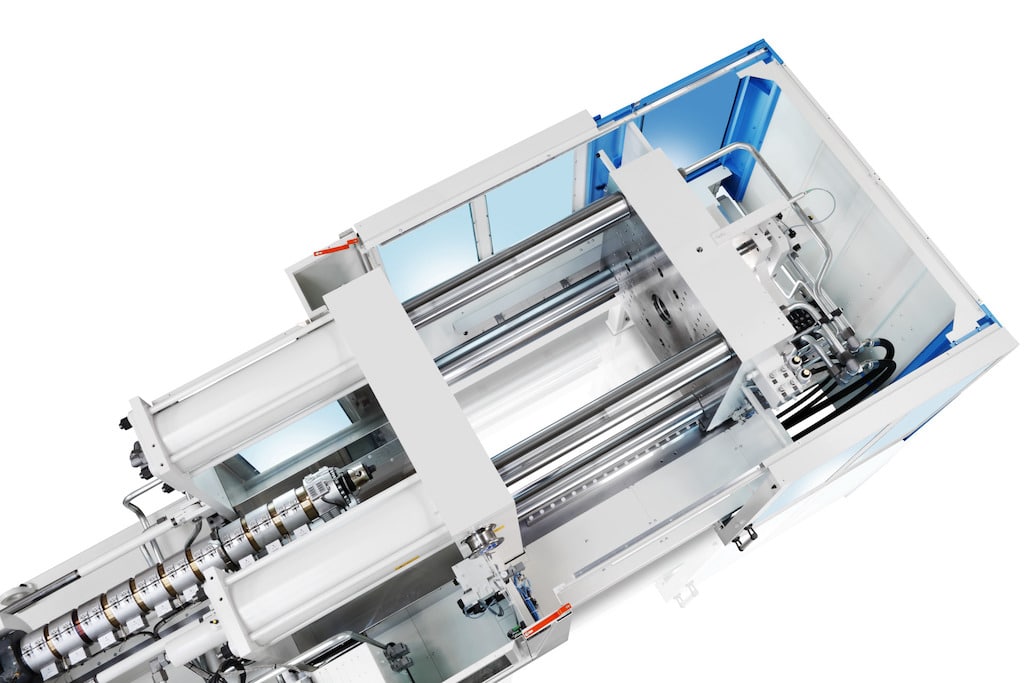

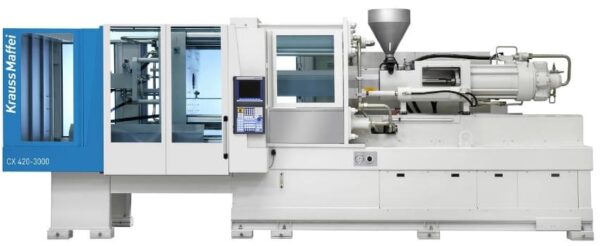

KM 420-4300 CX

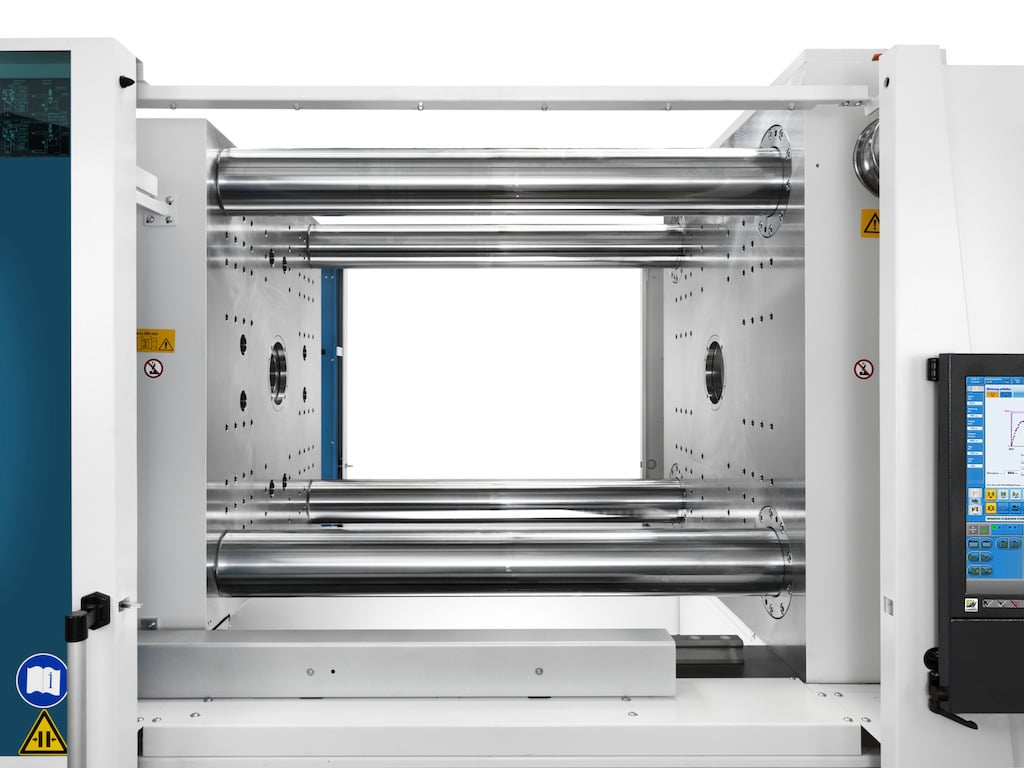

KM 420-4300 CX - Image 2

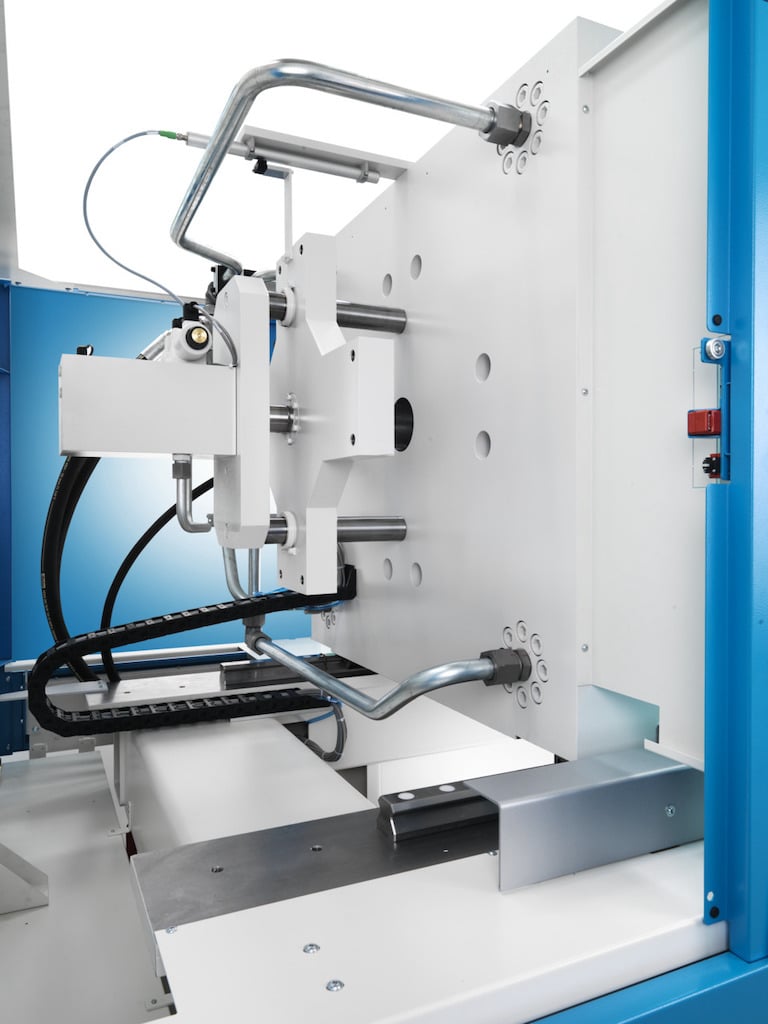

KM 420-4300 CX - Image 3

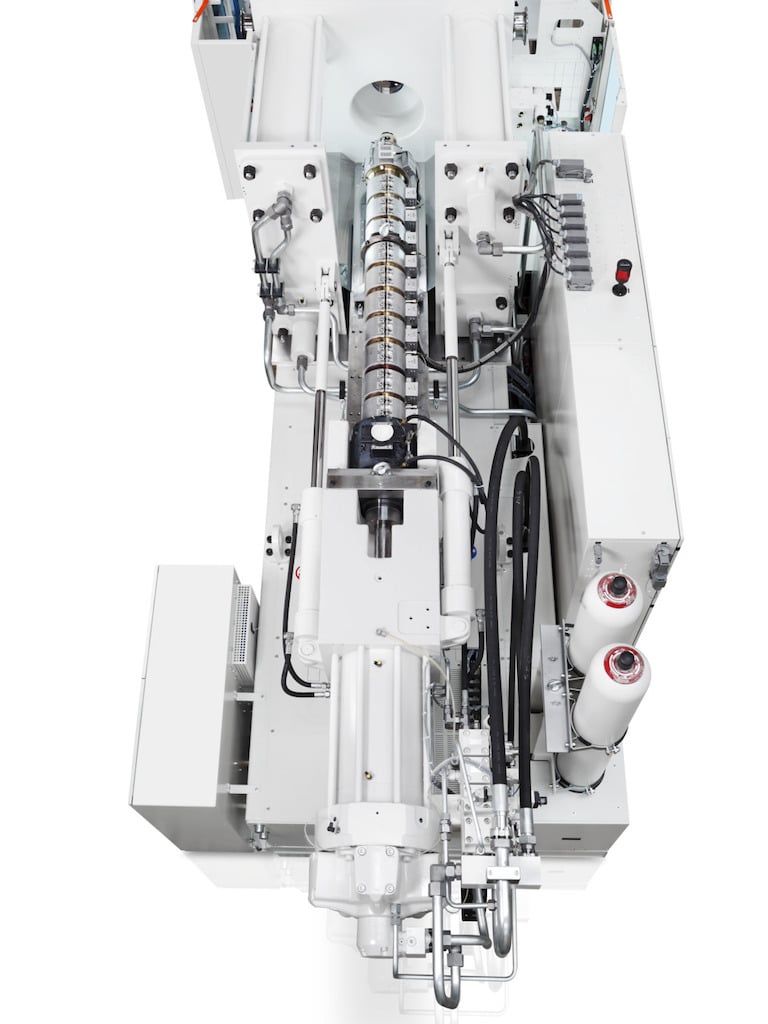

KM 420-4300 CX - Image 4
KM 420-4300 CX - Image 5
Item Number
5353
Brand
Krauss Maffei
Model
KM 420-4300 CX
Year
2023
Tonnage
472
Shot Size Oz.
73.51
Shot Size Grams
2083.971745
Tie Bar Spacing
35.43" x 31.5"
Platen Size
53.94" x 48.43"
Daylight
51.18"
Clamp Type
Hydraulic - 2 Platen
Control
MC6
Screw Diameter
90mm
Clamp Stroke
40.16"
Voltage
460
Injection Unit Size
4300
Ejector Stroke
9.84"
Min/Max Mold Height
14.96" - 55.12"
Specification Comments
NEW - Machine has NOT Been Commissioned

Representative Photos Only - Actual Machine Not Shown

Complete With:
Core Pull
Pneumatic Valve Gate
Robot Interface
