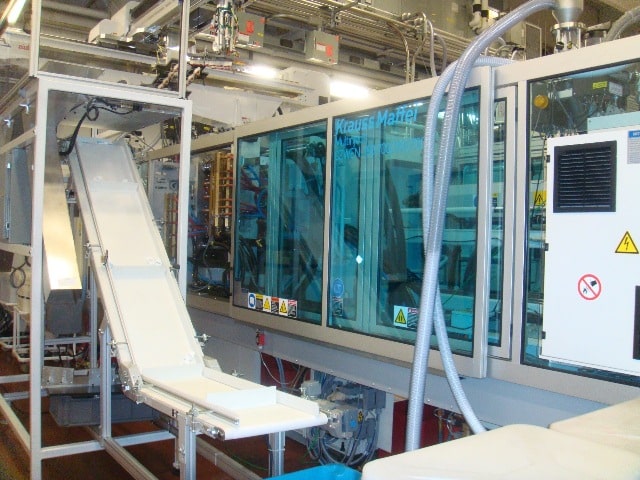

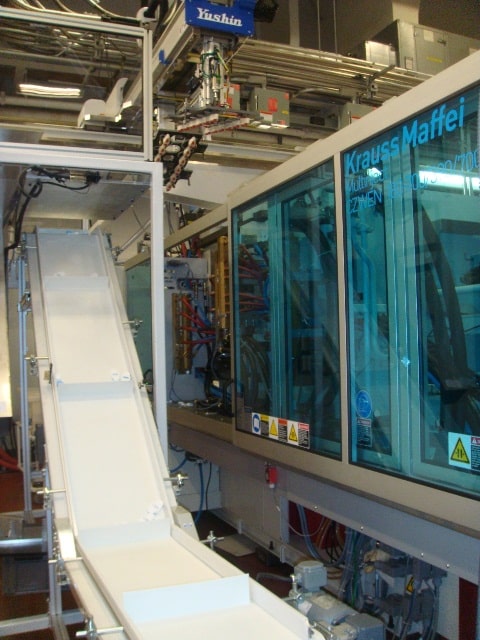

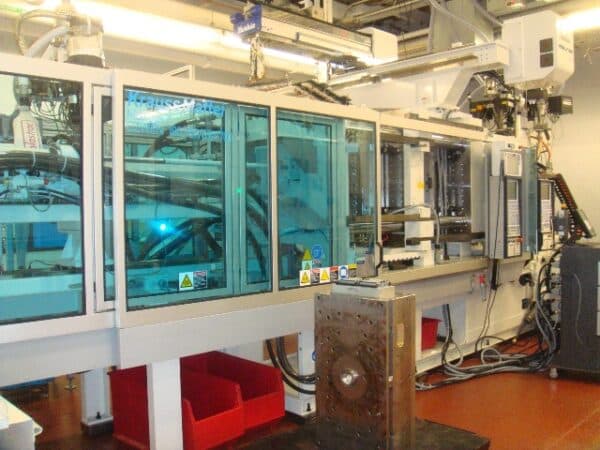

Krauss Maffei - Multinject 180/700/390/700 C ZW Spin Form - 3-Shot

Multinject 180/700/390/700 C ZW Spin Form - 3-Shot
Multinject 180/700/390/700 C ZW Spin Form - 3-Shot - Image 2
Multinject 180/700/390/700 C ZW Spin Form - 3-Shot - Image 3
Multinject 180/700/390/700 C ZW Spin Form - 3-Shot - Image 4
Multinject 180/700/390/700 C ZW Spin Form - 3-Shot - Image 5
Item Number
2994
Brand
Krauss Maffei
Model
Multinject 180/700/390/700 C ZW Spin Form - 3-Shot
Year
2010
Tonnage
198
Tie Bar Spacing
24.82" x 24.82"
Platen Size
41.57" x 46.18"
Daylight
70.92"
Clamp Type
2-Platen Hydraulic
Control
MC5
Voltage
480
Specification Comments

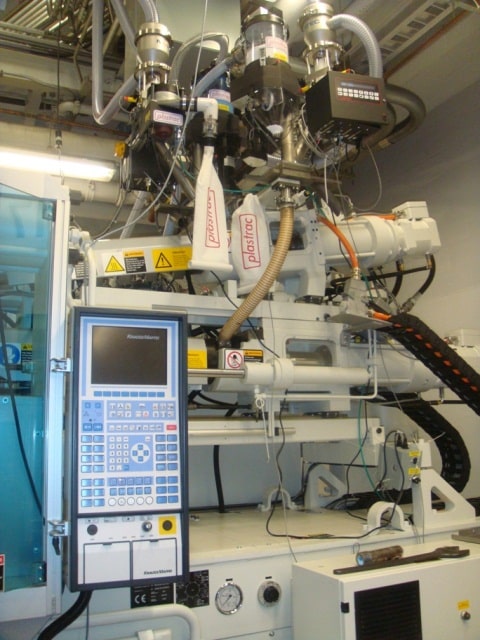

Primary Injection Unit: 9.81 oz.
Piggy Back Injection Unit: 6.53 oz.
Secondary Injection Unit: 12.10 oz.
Valve Gate on all 3 Injection Units
Dual Core Pull on Moving Platen
Core Pull on Fixed Platen

Complete With:

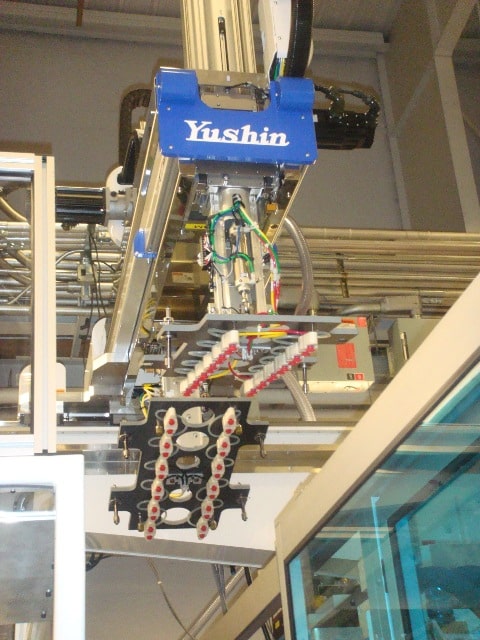

Yushin RAII-a-400DSLL-HS Robot (New in 2010)
Traverse Stroke: 1900mm

Kick Stroke:
Main Arm: 850mm
Sub Arm: 850mm

Vertical Stroke:
Main Arm: 1100mm
Sub Arm: 1100mm

2-Stage Telescopic Vertical Arm
Stack Mold Capability
High Speed
