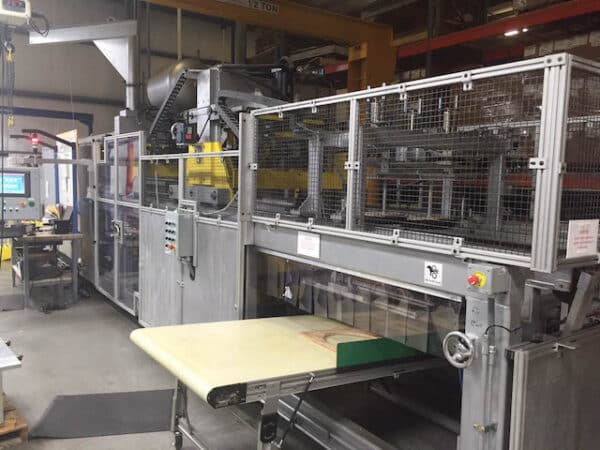

Specification Comments: Machine Specs:
Max tool size is 28” x 42”
Max roll width 30”
Machine comes with 5 HP Busch vacuum pump with 120 gallon vacuum reservoir tank along with 120 gallon air reservoir tank

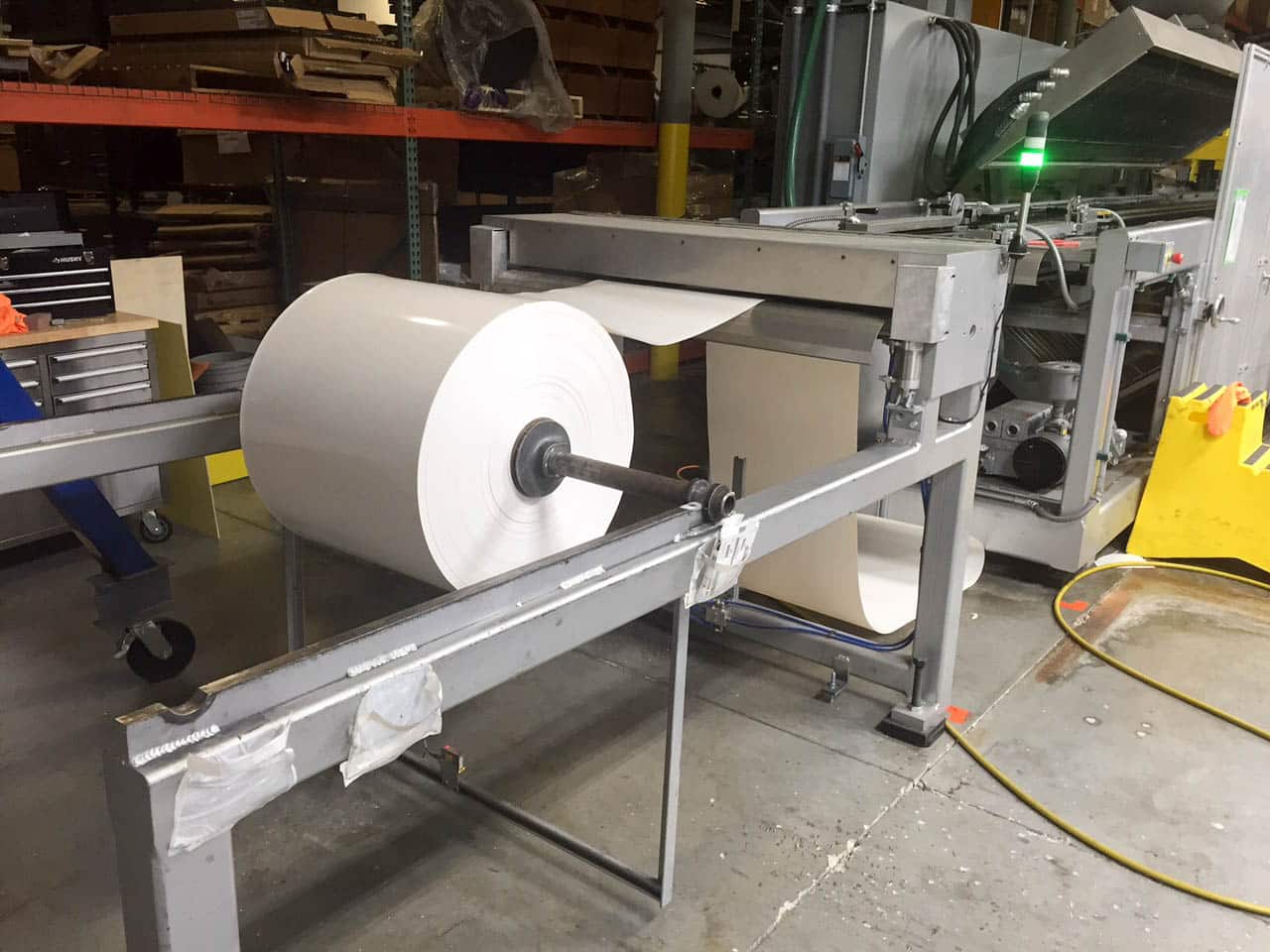

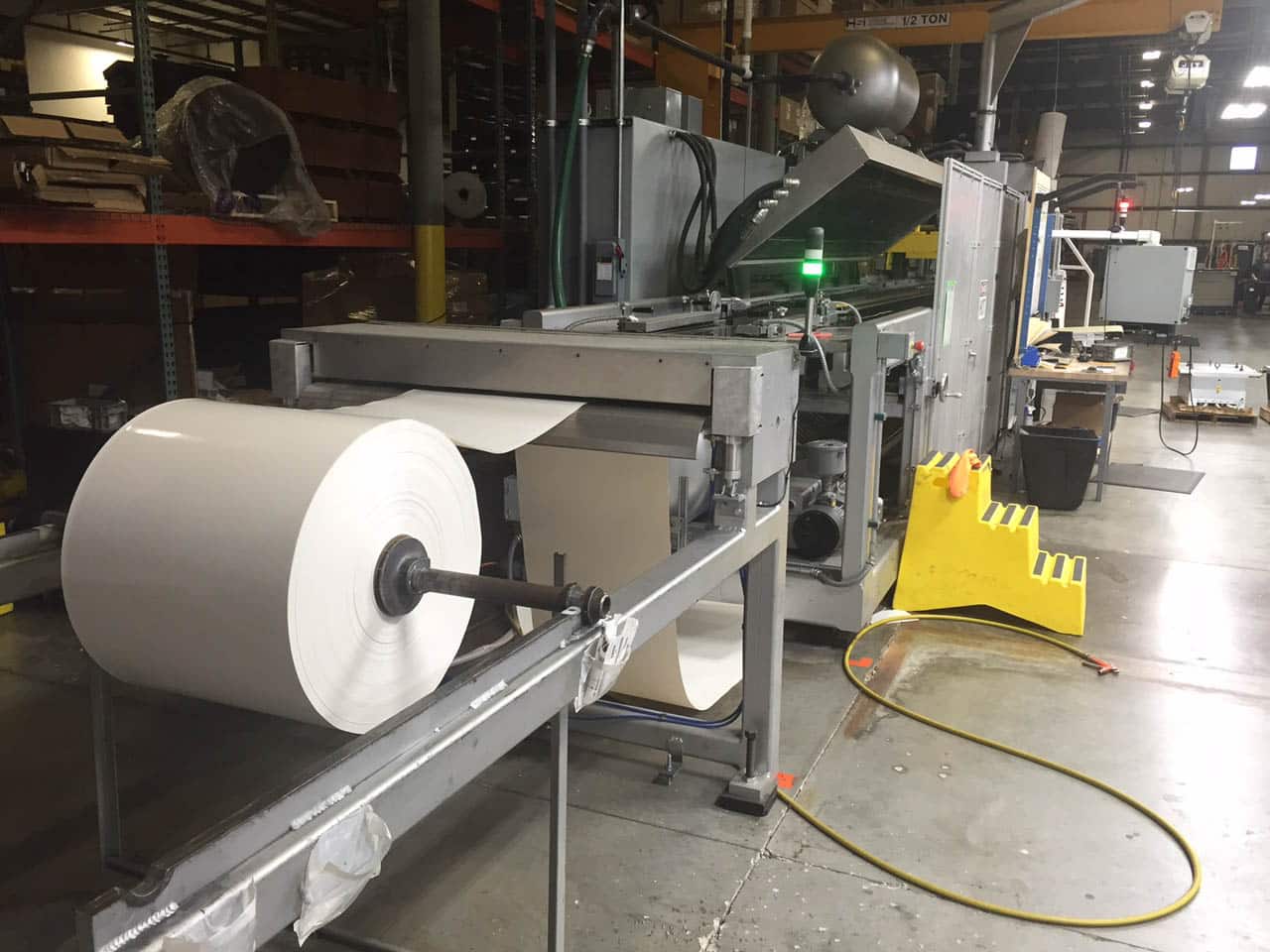

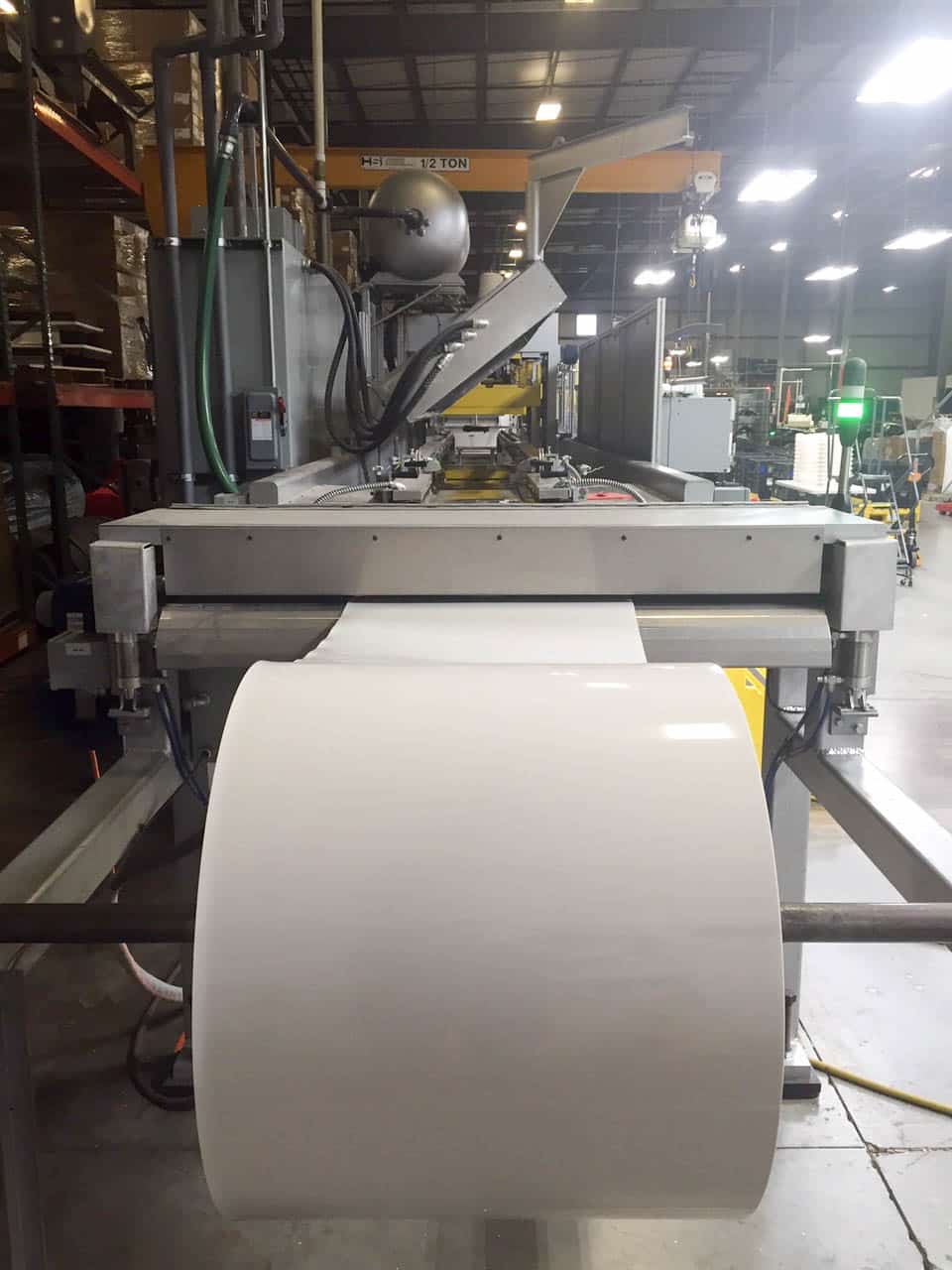

Auto feed roll stand capable of holding 2 rolls up to 1000 lbs each and a max diameter of 60”
Capable of roll & sheet fed up to .125” thick
#50 pin chain to convey material, drive is servo driven and digitally controlled, capable of 88” per second

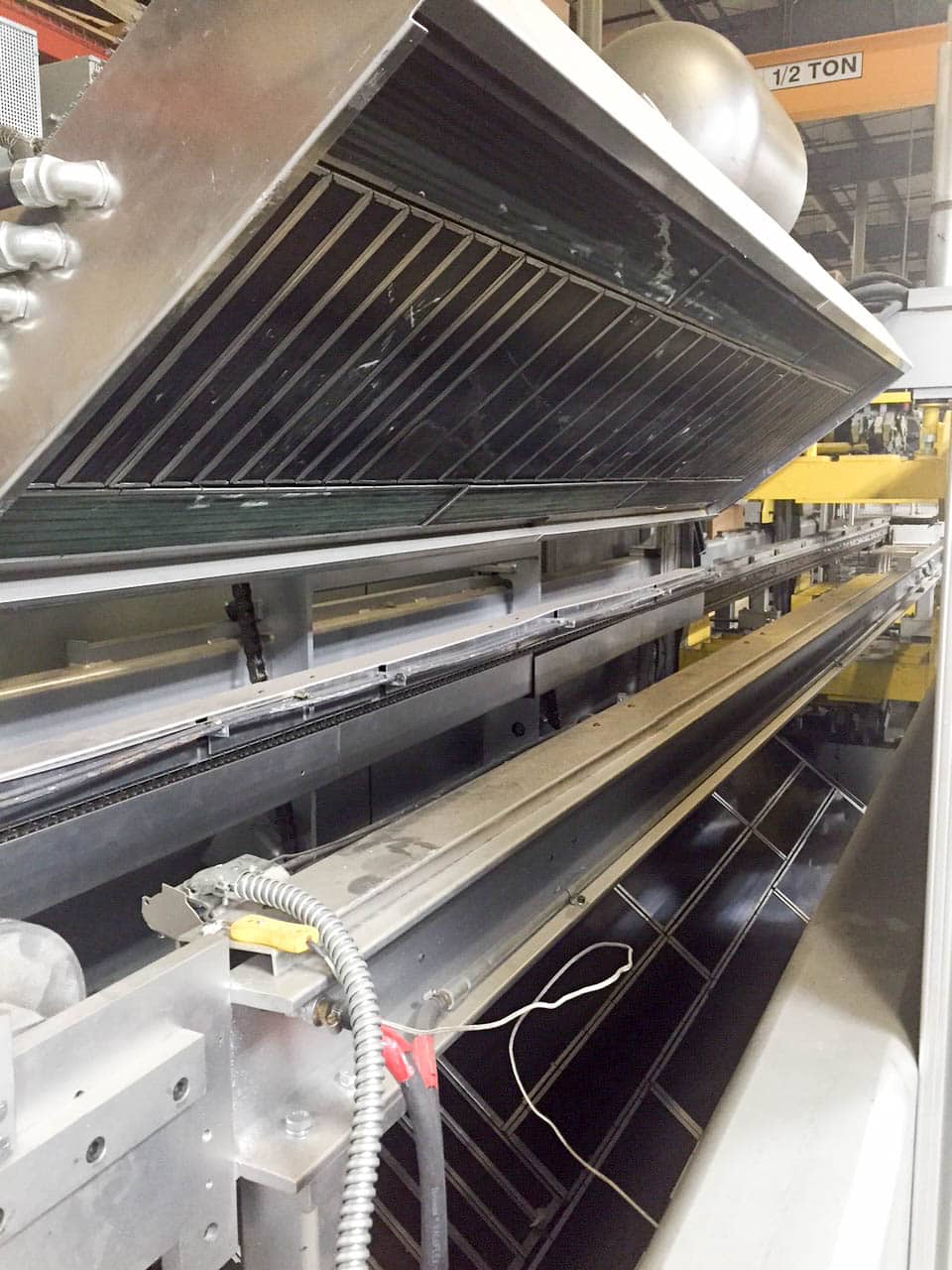

Oven
144” long clam shell style with emergency sag eye
Ceramic tiles (glass on bottom, cloth on top)
45 zones on top 16 zones on bottom
Zones controlled by % or temperature
Includes sheet softener and rail heaters (Calrod)

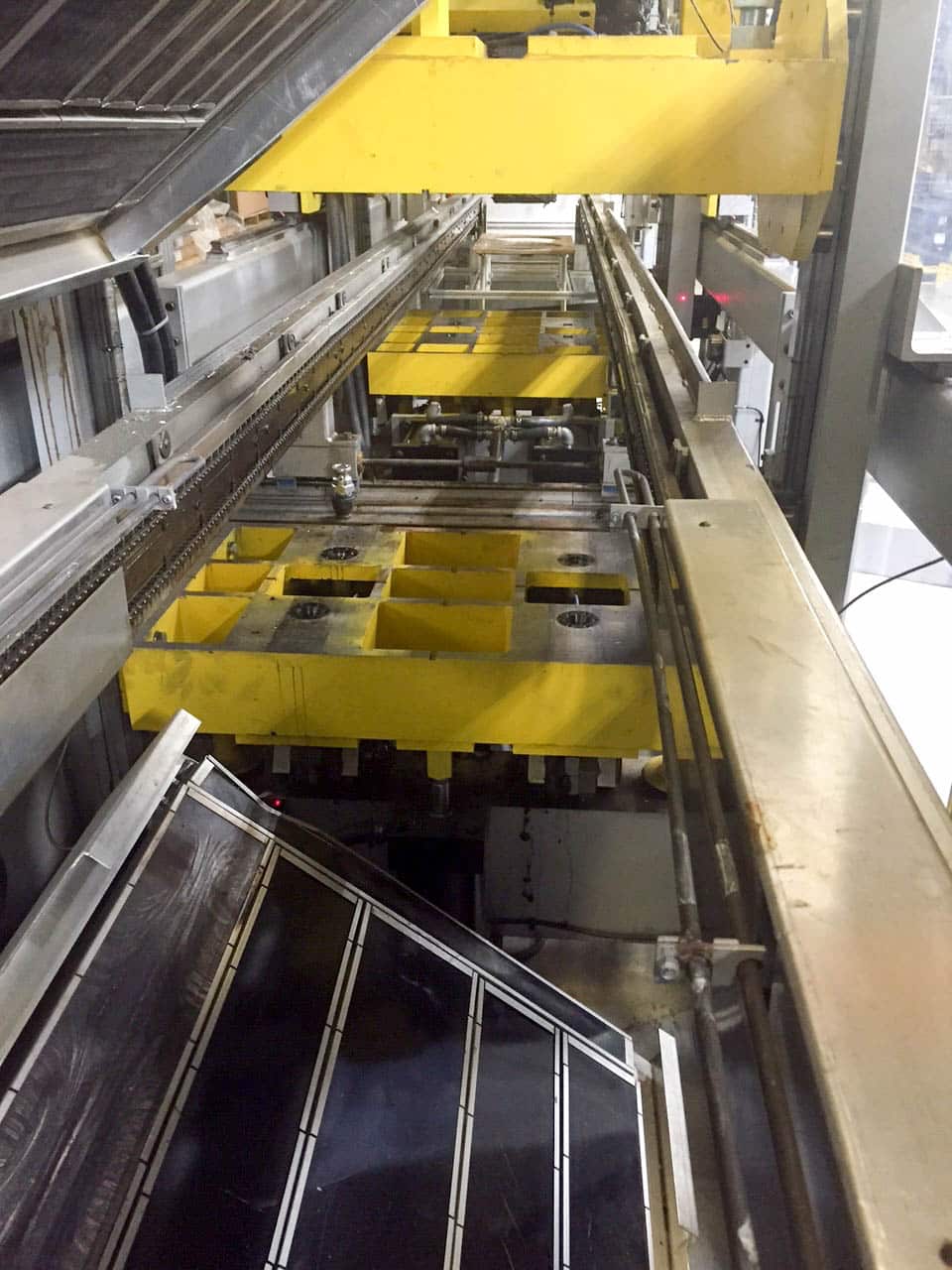

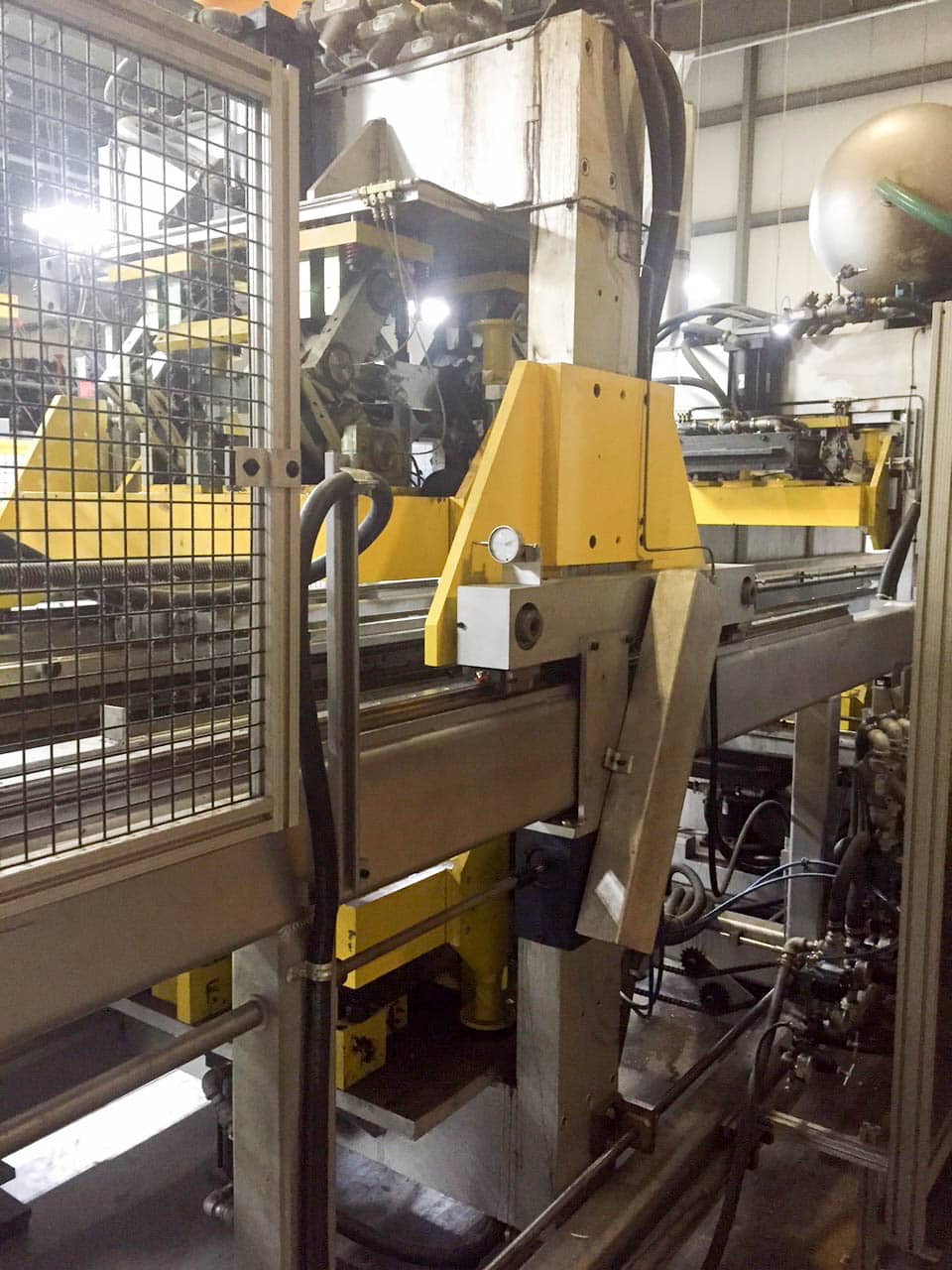

Form Station
Pneumatic control with toggle lock
Capable of pressure forming at a max of about 80 tons
Segen quick disconnects in each platen capable of 1000 lbs tool weight per platen
Shut height of 14” with a max stroke of 7 5/8”….open stop is adjustable close is not (7” of daylight for each platen

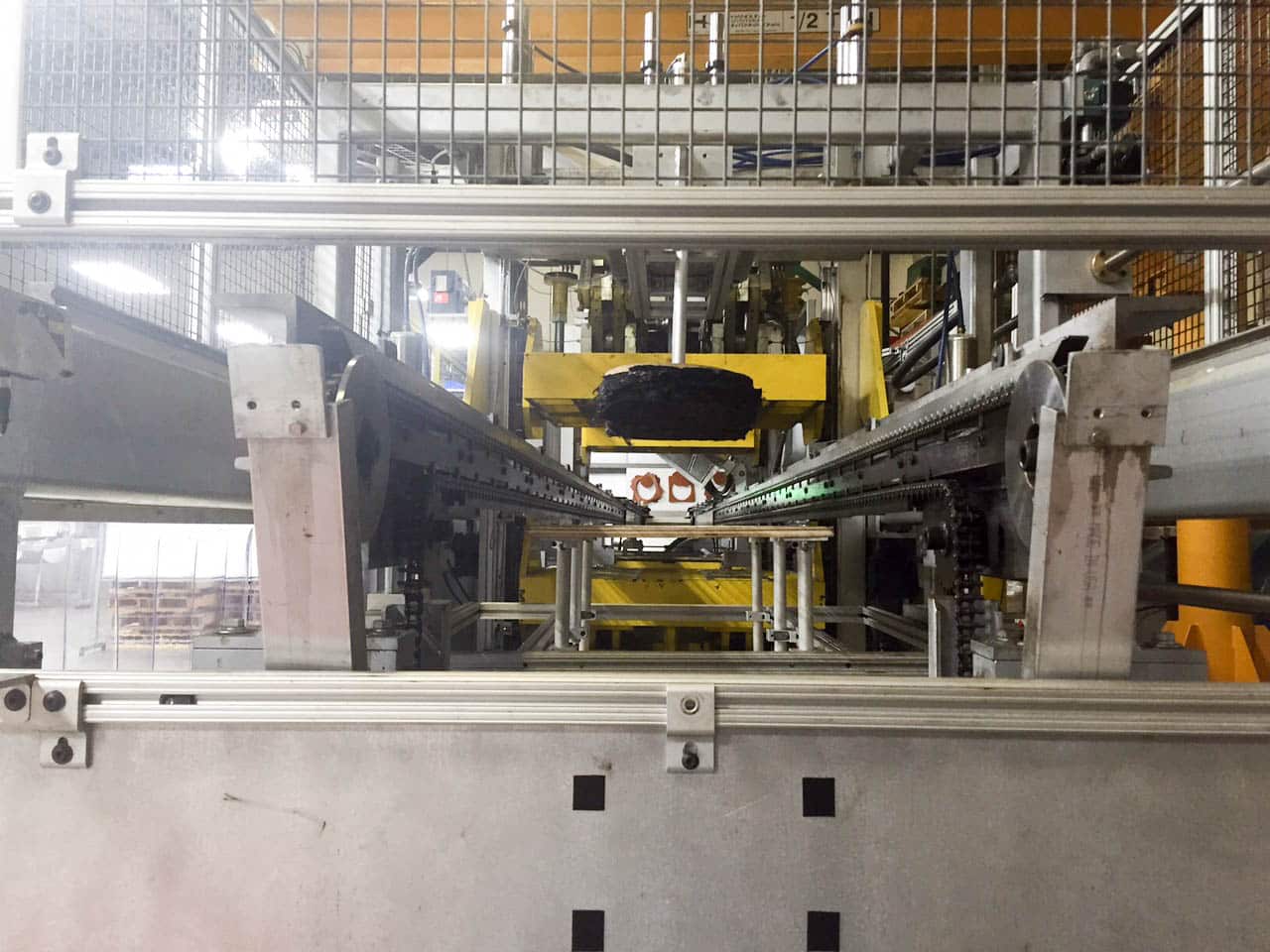

Trim Station
Pneumatic control with toggle lock
Wedge system on bottom platen provides nearly 150 tons of cutting pressure
Segen quick disconnects in each platen capable of 1000 lbs tool weight per platen
Shut height of 14” with a max stroke of 7 5/8”….open stop is adjustable close is not (7” of daylight for each platen

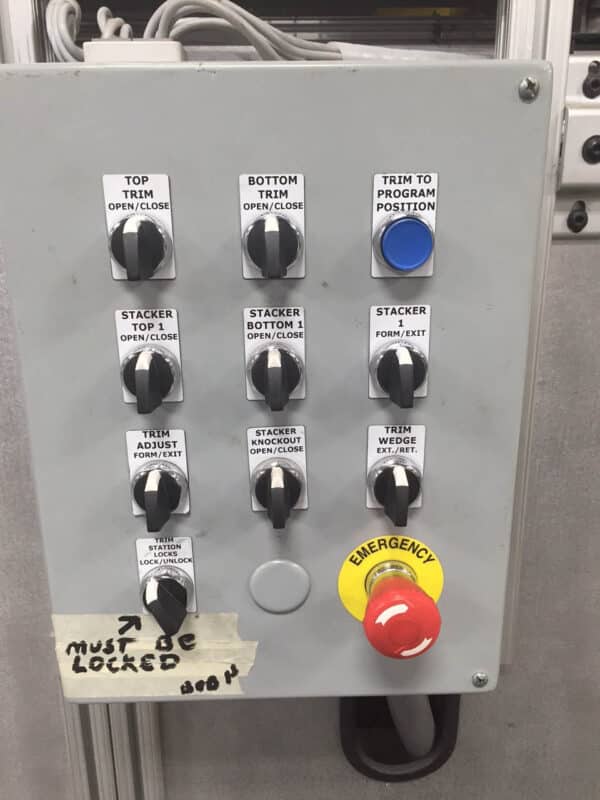

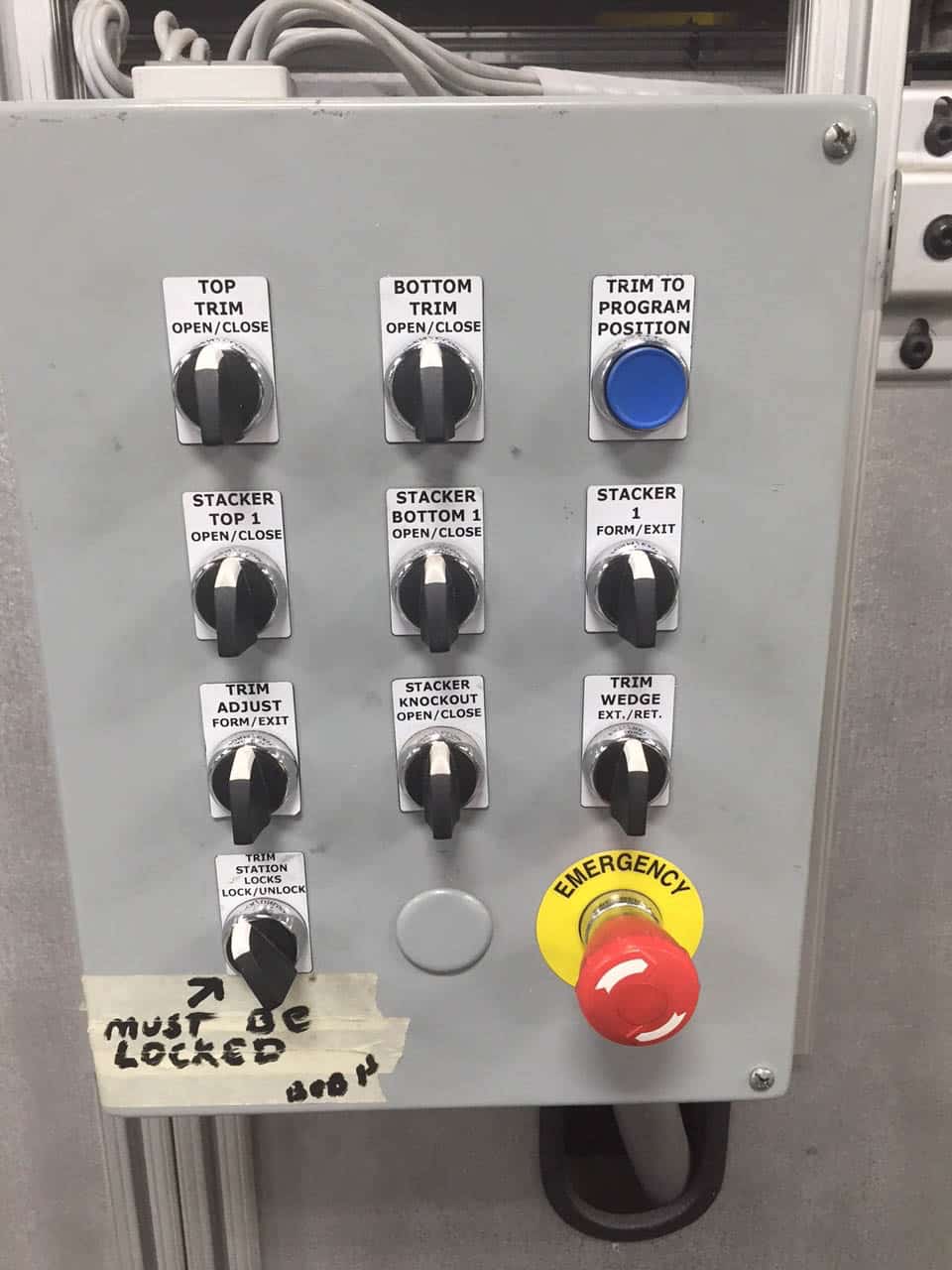

Controls
Allen Bradley PLC control system

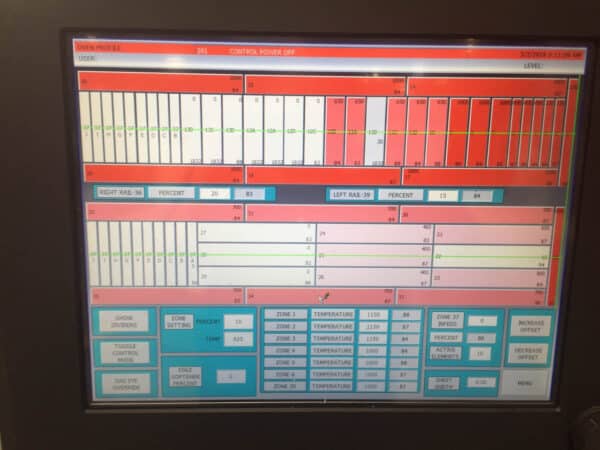

15” touch screen as HMI operator interface

Guarding and interlocks at all critical areas
