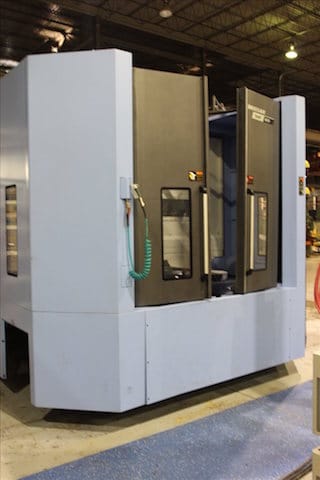

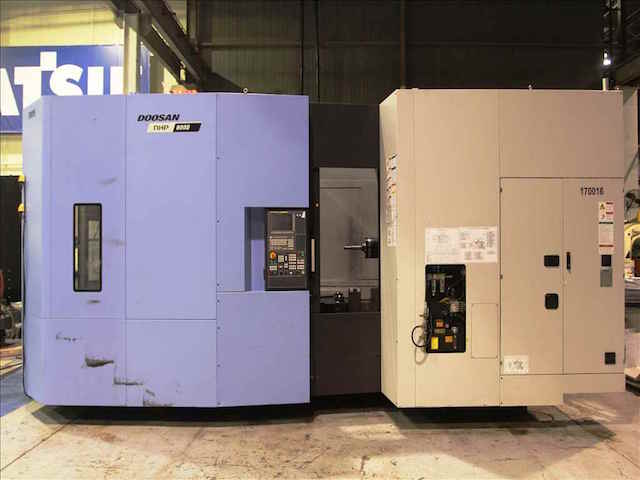

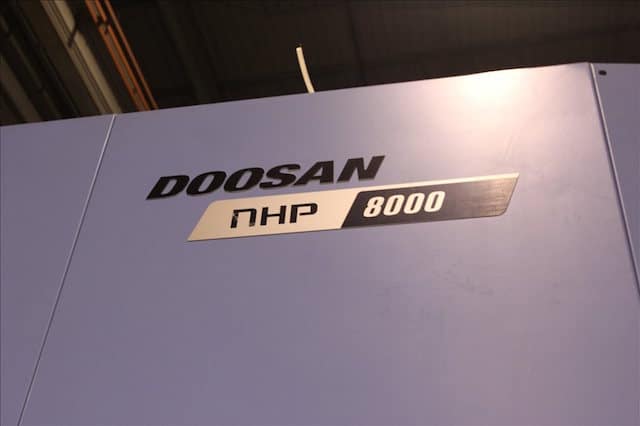

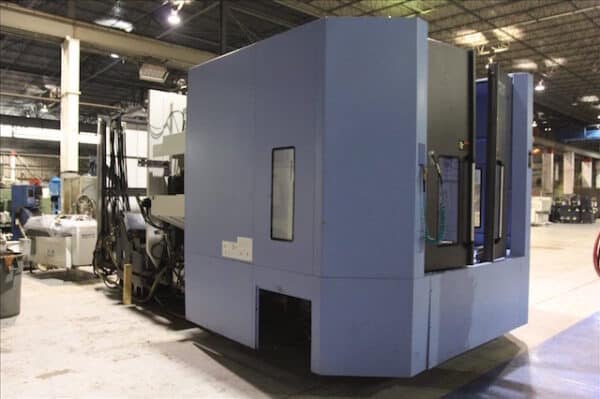

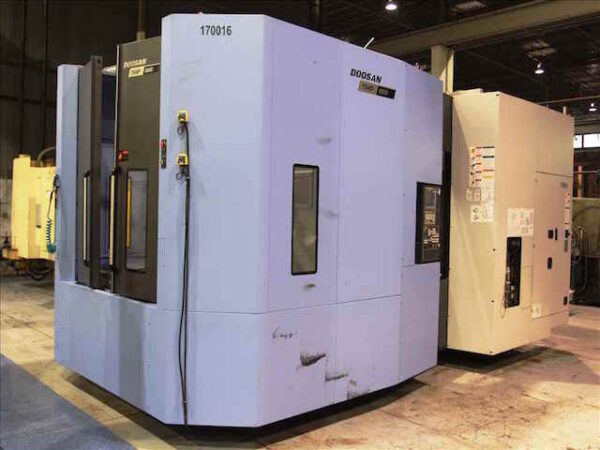

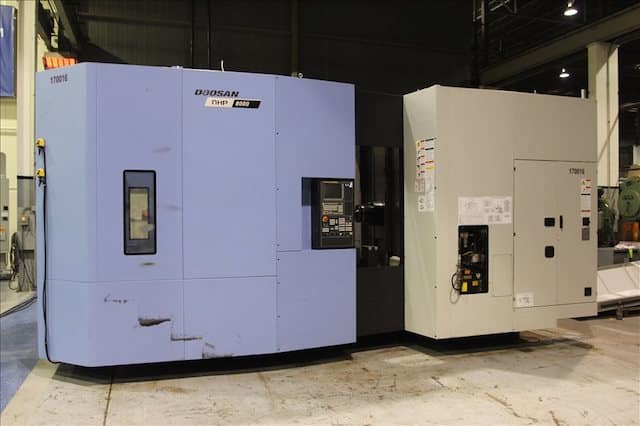

Doosan - NHP8000
- Item Number
- 4653
- Brand
- Doosan
- Model
- NHP8000
- Year
- 2016
- Control
- Fanuc 31i-B CNC Control
- Spindle RPM
- 10,000
- Taper
- ISO #50
- # of Pallets
- 2
- ATC
- Chain Type 90-ATC
- Pallet Size
- 31.5 in x 31.5 in
- X Travel
- 55.1 in
- Y Travel
- 47.2 in
- Z Travel
- 53.9 in
- Specification Comments
Distance from Spindle Nose to Table Center: 5.9" - 59.8"
Distance from Spindle Center to Table Top: 3" - 50.2"
Max. Workpiece Size: 57.1" x 61"
Max. Loading Capacity: 4409 lbs.
Tool Shank Type: BT50
Max. Tool Diameter (with / without adjacent tool): (5.1", 12.6")
Max. Tool Length: 24.8"
Max. Tool Weight: 66 lbs.
Tool Change Time, Tool-to-Tool: 2 sec.
Tool Change Time, Chip-to-Chip: 6.2 sec
EQUIPPED WITH:

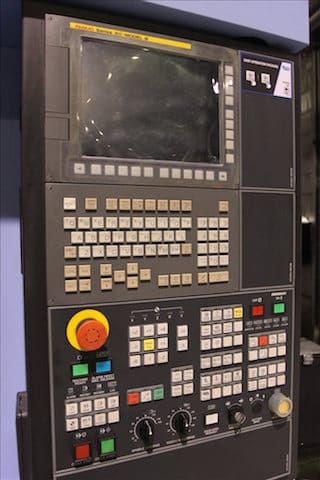

Fanuc 31i-B CNC Control
1° B-axis Indexing
